Ankyron NKG2D_HUMAN Clone CA30164
Clone Information
|
Clone ?
|
CA30164 |
|
Gene
|
KLRK1 D12S2489E NKG2D |
|
UniProtID
|
P26718 |
|
Organism
|
Homo sapiens (Human) |
|
Entry Name
|
NKG2D_HUMAN |
|
SNR ?
|
32 |
|
Product Type
|
Monomer |
|
Ankyron Applications
|
F, IF, IHC, ELISA, Kd |
|
Pack Size
|
100ug |
|
Label ?
Clones are also labelled with a His tag by default
|
|
|
Ankyron Kd
|
Kd Available |
Ankyrons® Testing Data
Lymphocytes were fixed in formaldehyde (4%), then stained using 1.4 µg V5-tagged Ankyron and anti-V5 antibody conjugated with APC (red) in Staining Buffer (RPMI 1640 + 10 % human serum), counterstaining nuclei with DAPI (blue). Inset: negative control of anti-V5 APC antibody alone.
Immunohistochemical analysis of paraffin-embedded human lymph node using 10 μg/ml V5-tagged Ankyron and anti-V5 HRP (1:500), detecting with DAB (brown) and counterstaining nuclei with haematoxylin (blue-purple). Heat-mediated antigen retrieval with Leica Citrate buffer (pH6).
Immunohistochemical analysis of paraffin-embedded human lymph node using 10 μg/ml V5-tagged Ankyron and anti-V5 HRP (1:500), detecting with DAB (brown) and counterstaining nuclei with haematoxylin (blue-purple). Heat-mediated antigen retrieval with Leica Tris-EDTA buffer (pH9).

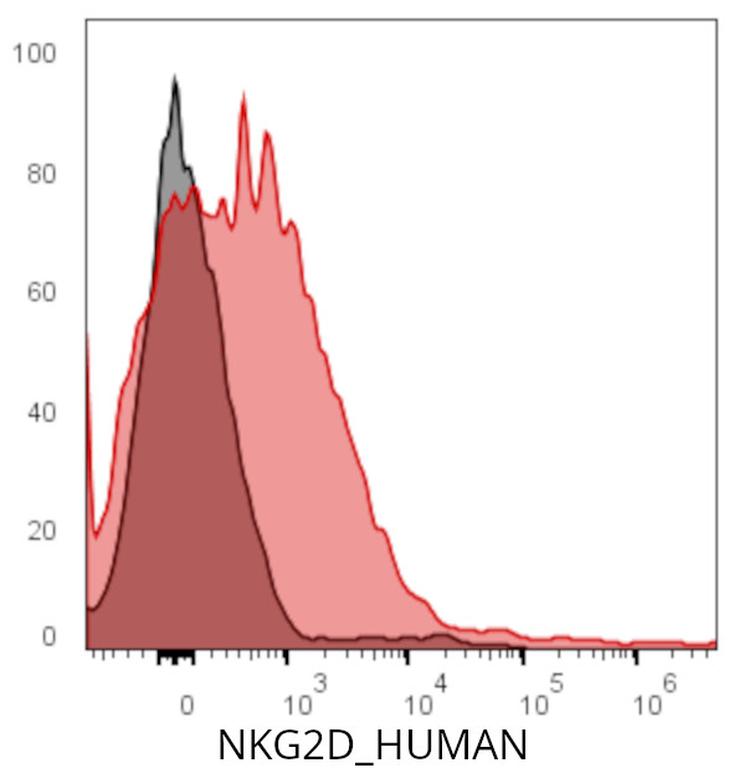

Flow cytometric analysis of human lymphocytes following staining with pre-conjugated Ankyron (0.4 µg) and anti-V5 APC (red). Negative control, anti-V5 APC only (grey).

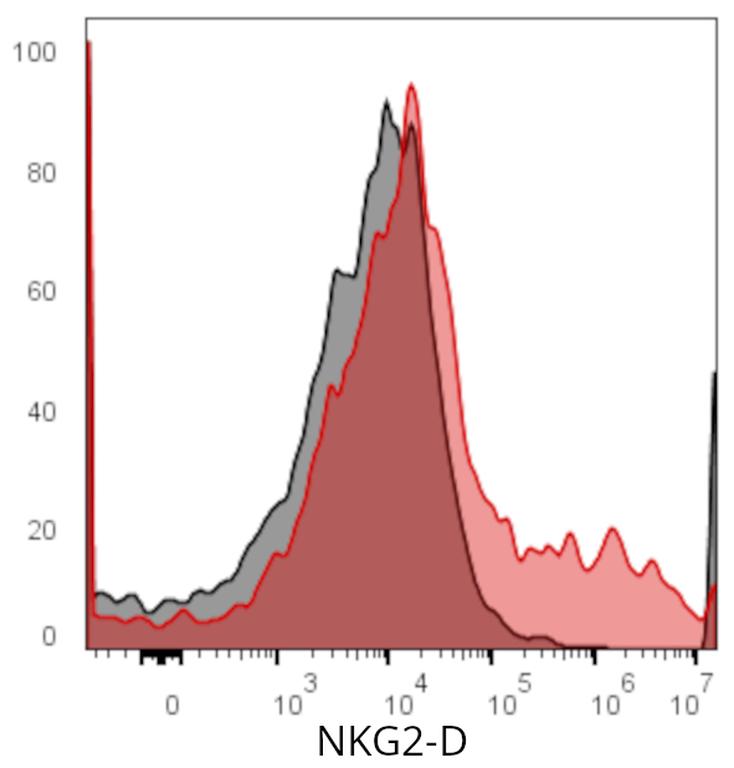

Flow cytometric analysis of lymphocytes following pre-conjugation of 0.4 μg of Ankyron with anti-V5 APC (red). Negative control, anti-V5 APC only.

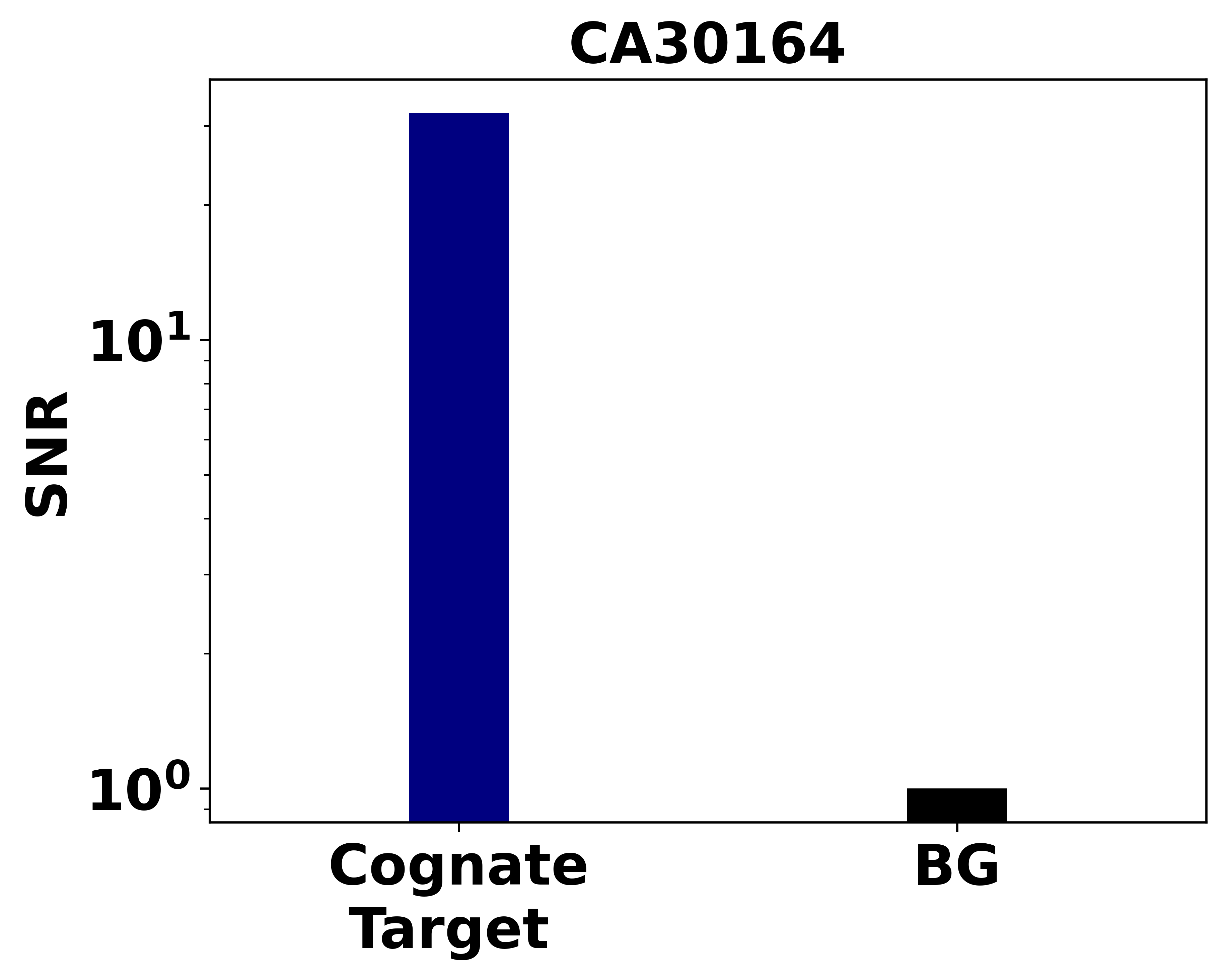

Binding assay determination of the signal to noise ratio (SNR) of V5-labeled Ankyrons® CA30164 binding to 0.5 picomoles of immobilised NKG2D_HUMAN, over a background (BG) of non-cognate target protein. The Ankyron was pre-conjugated with the ProImmune Anti-V5 HRP label reagent before detection with a chemiluminescence substrate.

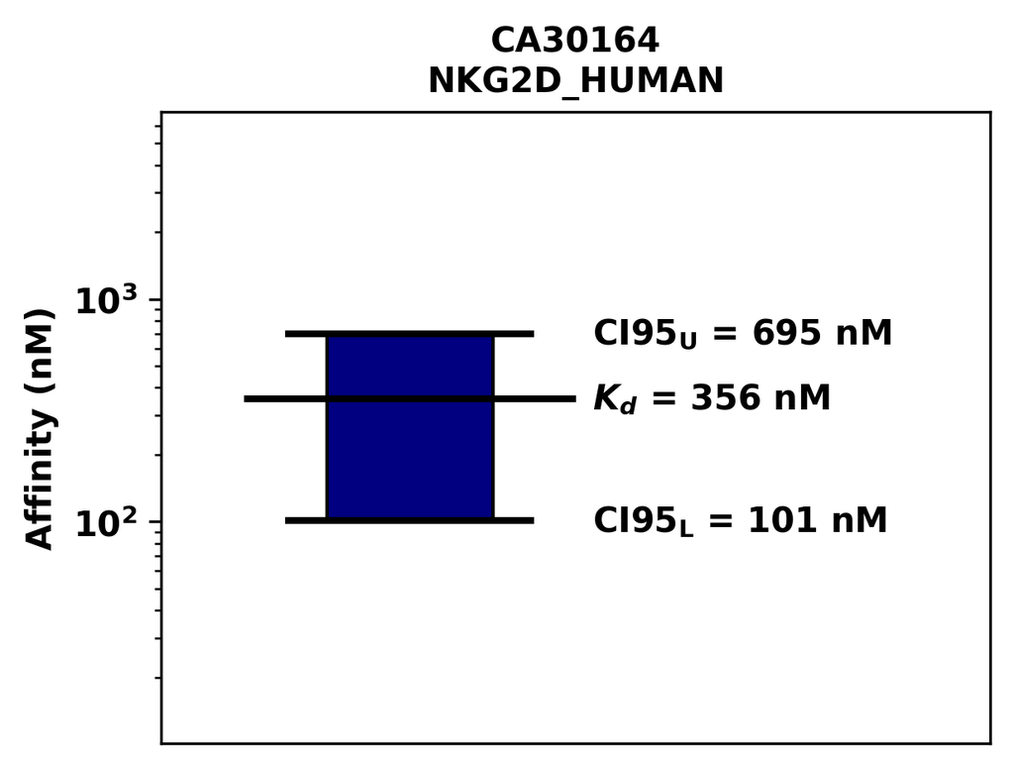

Affinity measurement of V5-labeled Ankyrons® CA30164 binding to NKG2D_HUMAN, of value Kd = 356.0 nM, with 95% confidence bounds (CI95U, CI95L). Conjugation to ProImmune Anti-V5 HRP label reagent allows detection in Solution Equilibrium Titration immunoassay with a chemiluminescent substrate.
