Ankyron CCL4_MOUSE Clone BZ30963

J774A.1 mouse macrophage were fixed in formaldehyde (1%), then stained using 1.4 µg V5-tagged Ankyron and anti-V5 antibody conjugated with APC (red) in Permeabilisation Staining Buffer (RPMI 1640 + 10 % human serum + 0.5% saponin), counterstaining nuclei with DAPI (blue). Inset: negative control of anti-V5 APC antibody alone.

J774A.1 mouse macrophage were fixed in formaldehyde (1%), then stained using 1.4 µg V5-tagged Ankyron and anti-V5 antibody conjugated with APC (red) in Permeabilisation Staining Buffer (RPMI 1640 + 10 % human serum + 0.5% saponin), counterstaining nuclei with DAPI (blue). Inset: negative control of anti-V5 APC antibody alone.

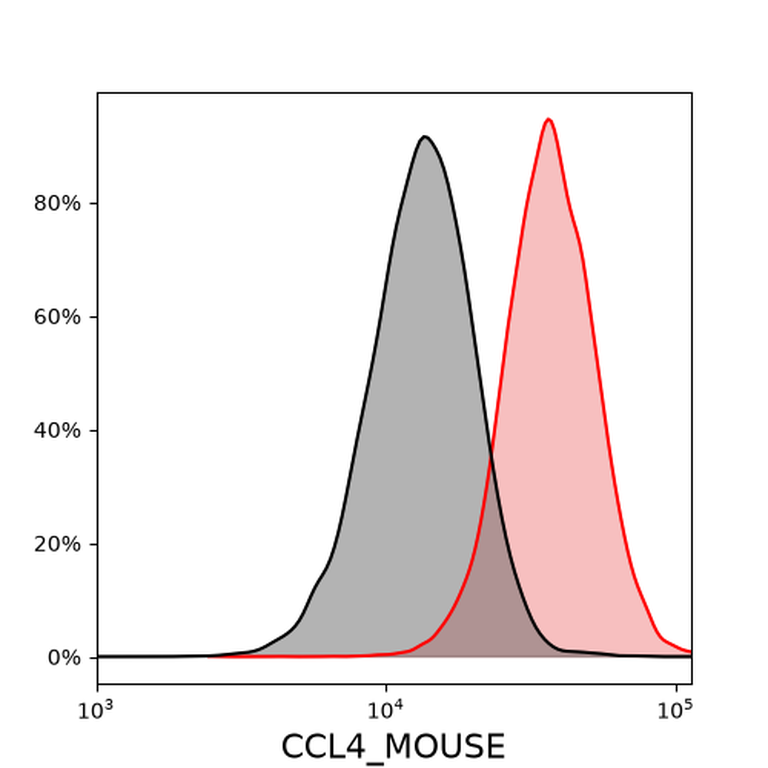

Flow cytometric analysis of LPS-stimulated mouse J774A.1 cells following permeabilisation with Cytofix/Cytoperm and staining with pre-conjugated Ankyron (0.4 µg) and anti-V5 APC (red). Negative control, anti-V5 APC only (grey).

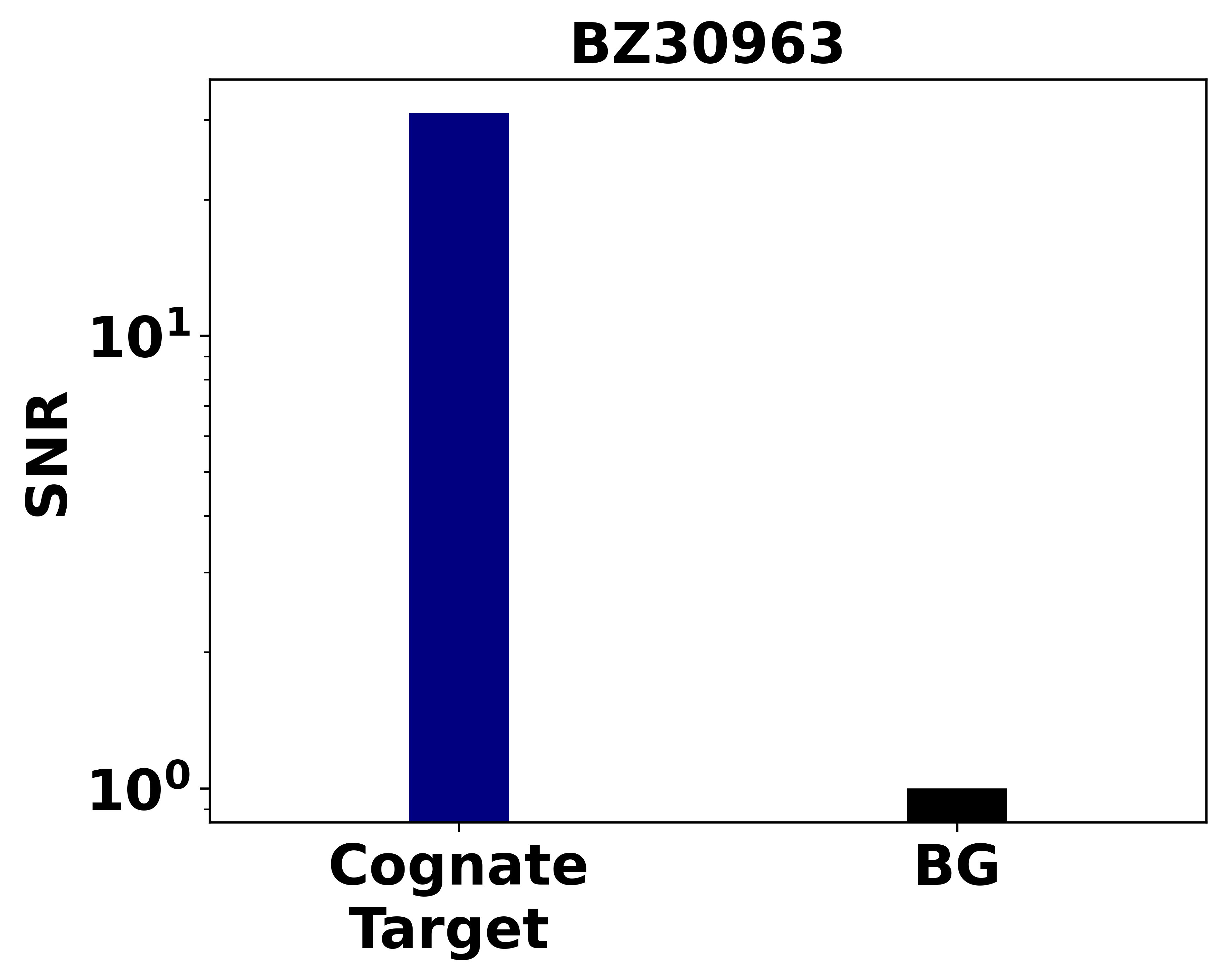

Binding assay determination of the signal to noise ratio (SNR) of V5-labeled Ankyrons® BZ30963 binding to 0.5 picomoles of immobilised CCL4_MOUSE, over a background (BG) of non-cognate target protein. The Ankyron was pre-conjugated with the ProImmune Anti-V5 HRP label reagent before detection with a chemiluminescence substrate.

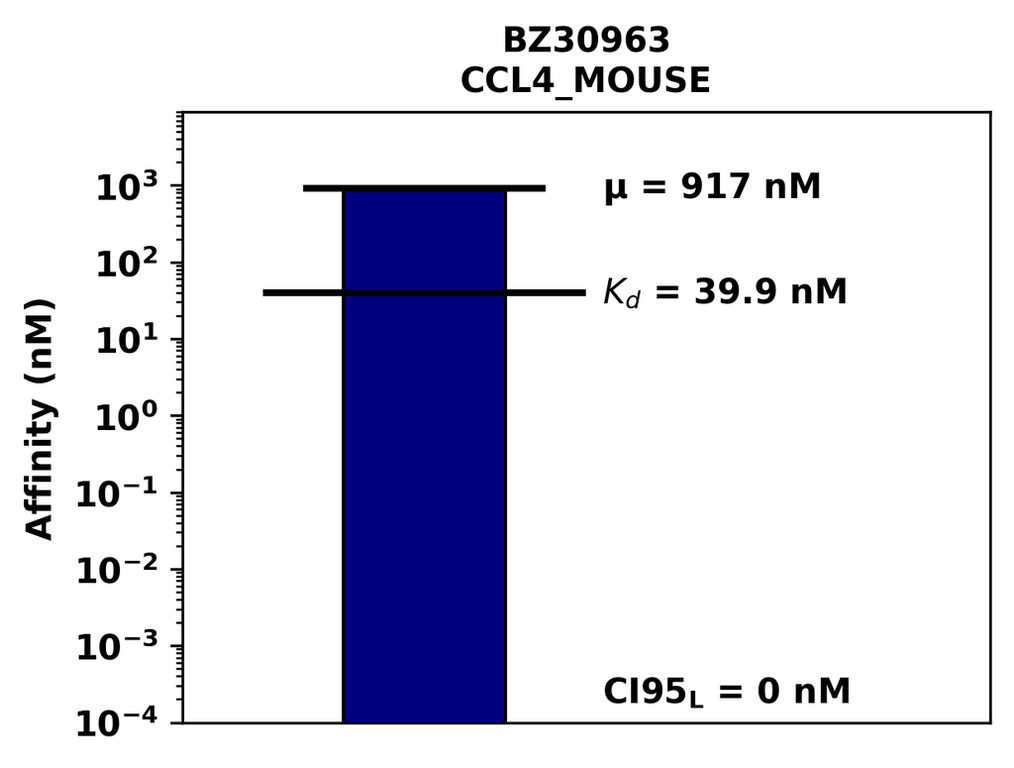

Affinity measurement of V5-labeled Ankyrons® BZ30963 binding to CCL4_MOUSE, of value K_d = 39.9 nM, with 95% confidence bounds (CI95_U, CI95_L). Conjugation to ProImmune Anti-V5 HRP label reagent allows detection in Solution Equilibrium Titration immunoassay with a chemiluminescent substrate.
