Ankyron SMAD4_HUMAN Clone CK30473
Clone Information
|
Clone ?
|
CK30473 |
|
Gene
|
SMAD4 DPC4 MADH4 |
|
UniProtID
|
Q13485 |
|
Organism
|
Homo sapiens (Human) |
|
Entry Name
|
SMAD4_HUMAN |
|
SNR ?
|
377 |
|
Product Type
|
Monomer |
|
Ankyron Applications
|
F, IF, IHC, ELISA, Kd |
|
Pack Size
|
100ug |
|
Label ?
Clones are also labelled with a His tag by default
|
|
|
Ankyron Kd
|
Kd <10nM |
Ankyrons® Testing Data
HepG2 were fixed in formaldehyde (1%), then stained using 1.4 µg V5-tagged Ankyron and anti-V5 APC (red) in Permeabilisation Staining Buffer (RPMI 1640 + 10 % human serum + 0.5% saponin), counterstaining nuclei with DAPI (blue). Inset: negative control of anti-V5 APC alone.
Immunohistochemical analysis of paraffin-embedded human placenta using 10 μg/ml V5-tagged Ankyron and anti-V5 HRP (1 in 500), detecting with DAB (brown) and counterstaining nuclei with haematoxylin (blue-purple). Heat-mediated antigen retrieval with Leica Tris-EDTA buffer (pH9), 40 min.

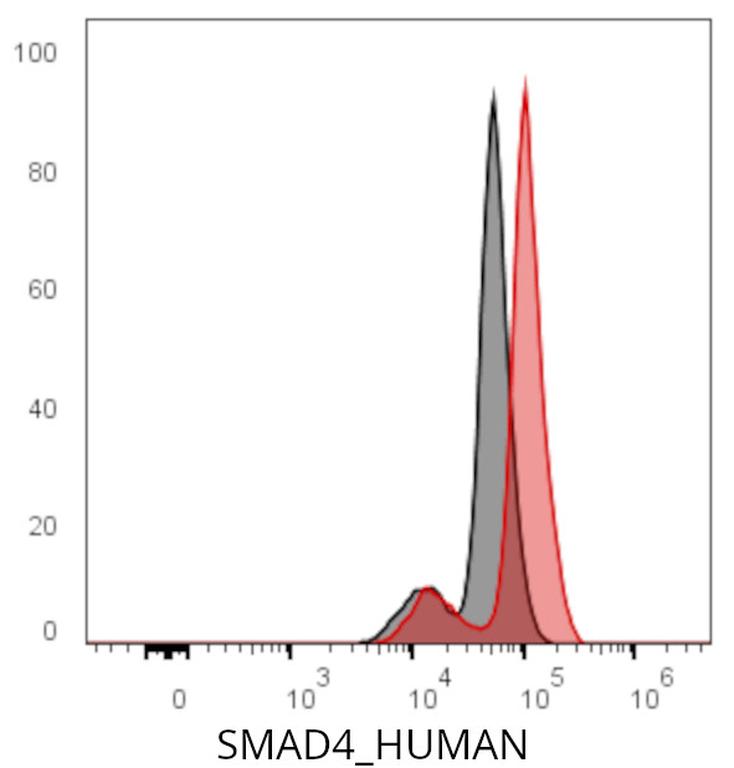

Flow cytometric analysis of human HepG2 following permeabilization and staining with pre-conjugated Ankyron (0.33 µg) and anti-V5 APC (red). Negative control, anti-V5 APC only (grey).

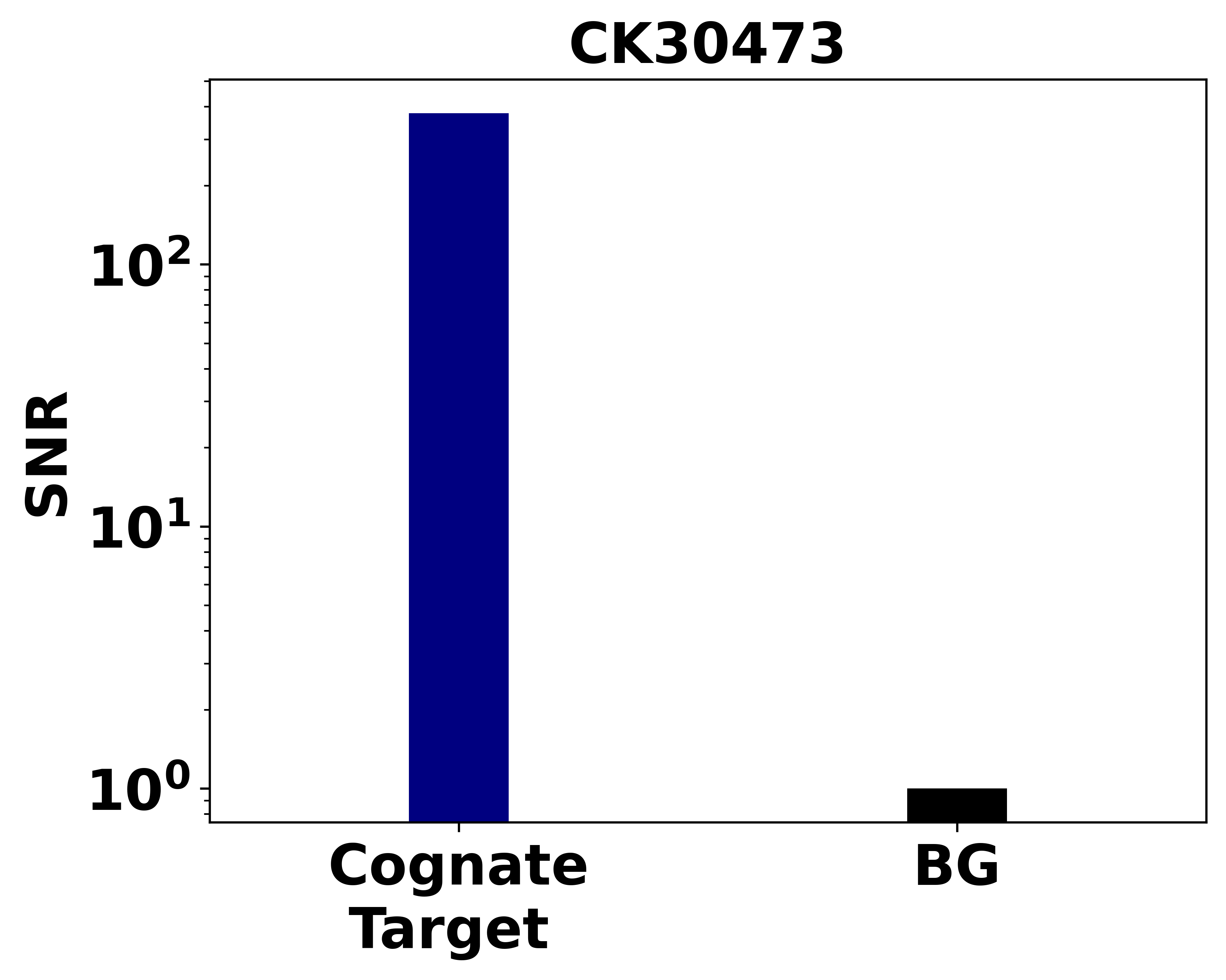

Binding assay determination of the signal to noise ratio (SNR) of V5-labeled Ankyrons® CK30473 binding to 0.5 picomoles of immobilised SMAD4_HUMAN, over a background (BG) of non-cognate target protein. The Ankyron was pre-conjugated with the ProImmune Anti-V5 HRP label reagent before detection with a chemiluminescence substrate.

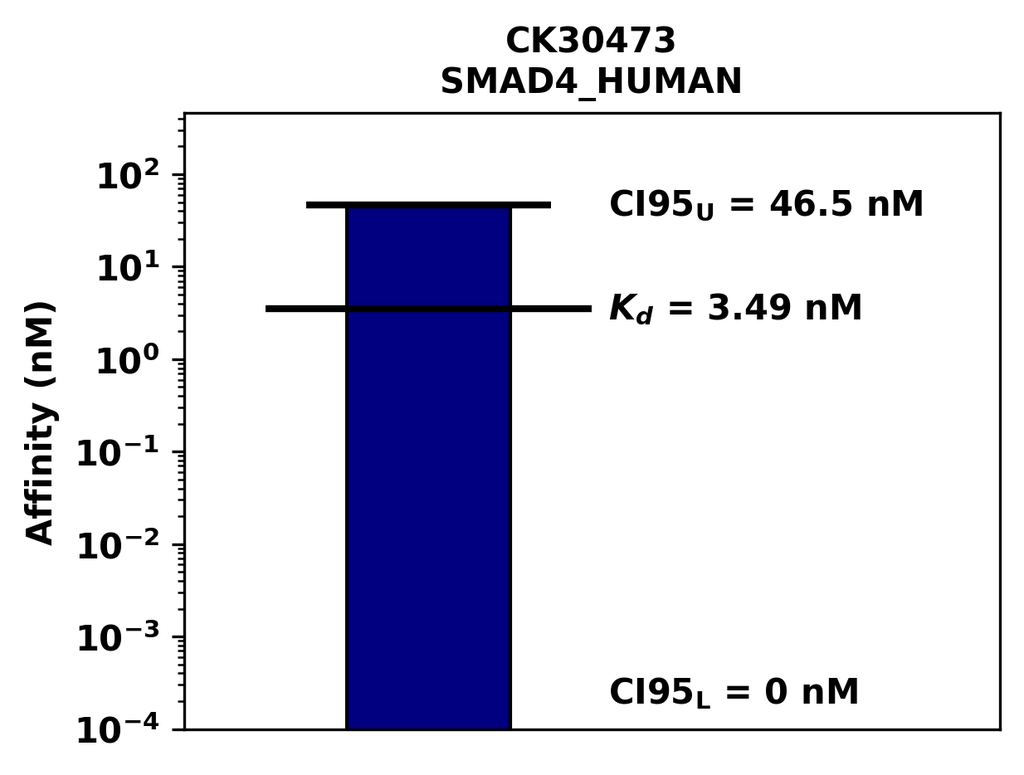

Affinity measurement of V5-labeled Ankyrons® CK30473 binding to SMAD4_HUMAN, of value Kd = 3.49 nM, with 95% confidence bounds (CI95U, CI95L). Conjugation to ProImmune Anti-V5 HRP label reagent allows detection in Solution Equilibrium Titration immunoassay with a chemiluminescent substrate.
