Ankyron IL4_HUMAN Clone 01S20137
Ankyrons® Testing Data

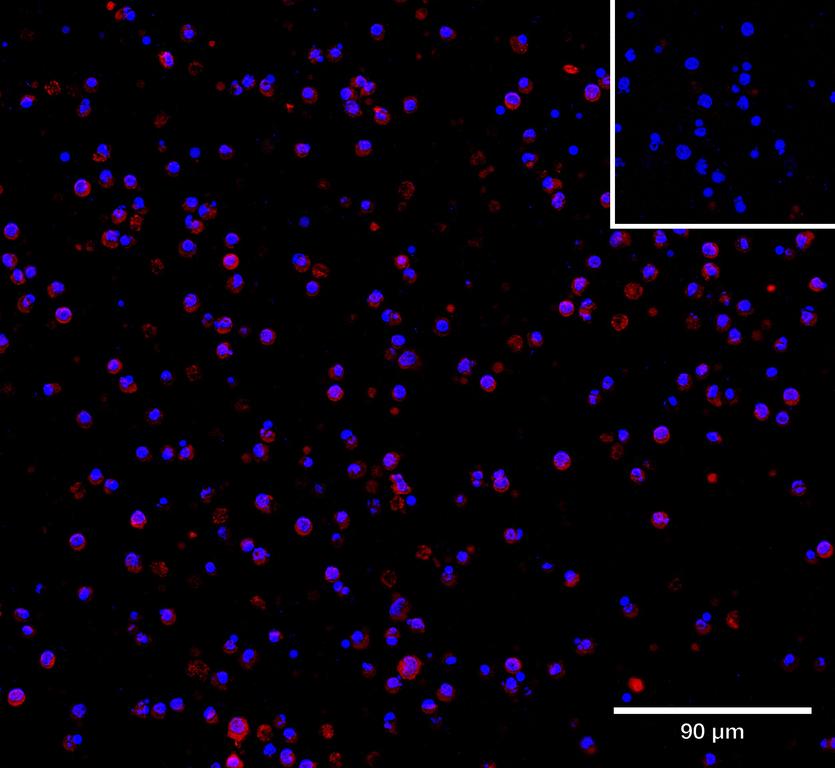

Lymphocytes were fixed in formaldehyde (1%), then stained using 1.4 µg V5-tagged Ankyron and anti-V5 APC (red) in Permeabilisation Staining Buffer (RPMI 1640 + 10 % human serum + 0.5% saponin), counterstaining nuclei with DAPI (blue). Inset: negative control of anti-V5 APC alone.

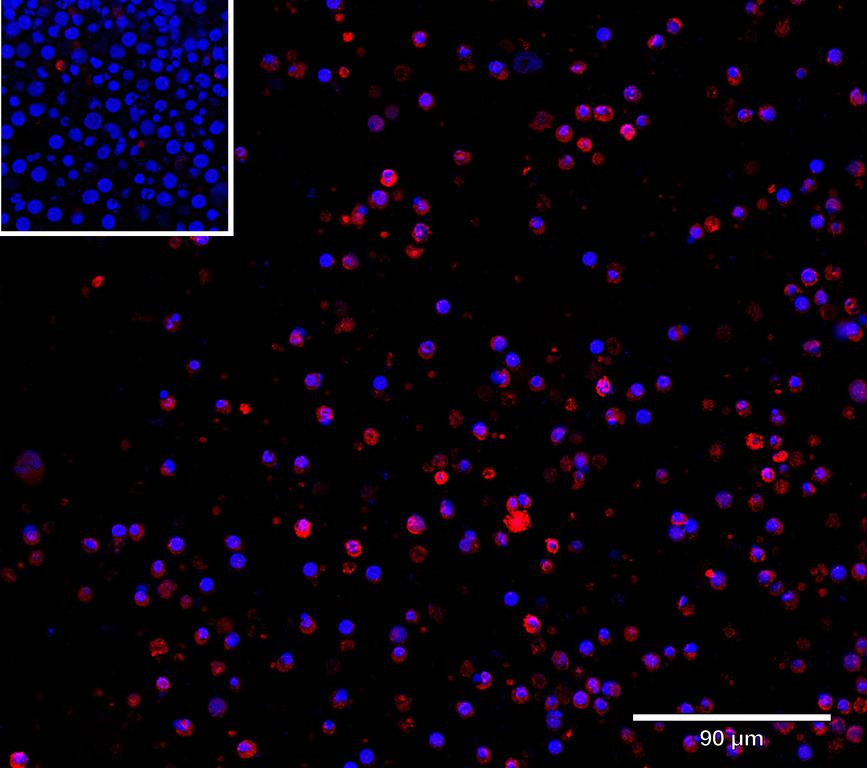

Lymphocytes were stained using 1.4 µg V5-tagged Ankyron and anti-V5 APC (red) in Permeabilisation Staining Buffer (RPMI 1640 + 10 % human serum + 0.5% saponin), counterstaining nuclei with DAPI (blue). Inset: negative control of anti-V5 APC alone.

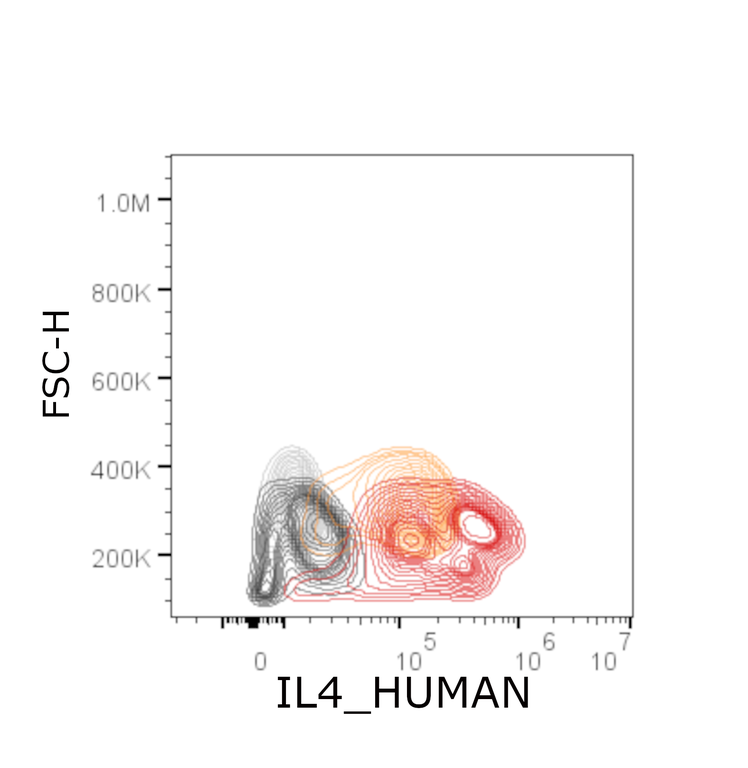

Flow cytometric analysis of human lymphocytes, either resting (orange) or following stimulation (red) for 5 h with Cell Stimulation Cocktail (phorbol 12-myristate 13-acetate and ionomycin, with protein transport inhibitors brefeldin A and monensin), then permeabilised with Cytofix/Cytoperm and stained with pre-conjugated Ankyron (0.4 µg) and anti-V5 APC. Negative controls, anti-V5 APC only on unstimulated (light grey) and stimulated (dark grey) cells.

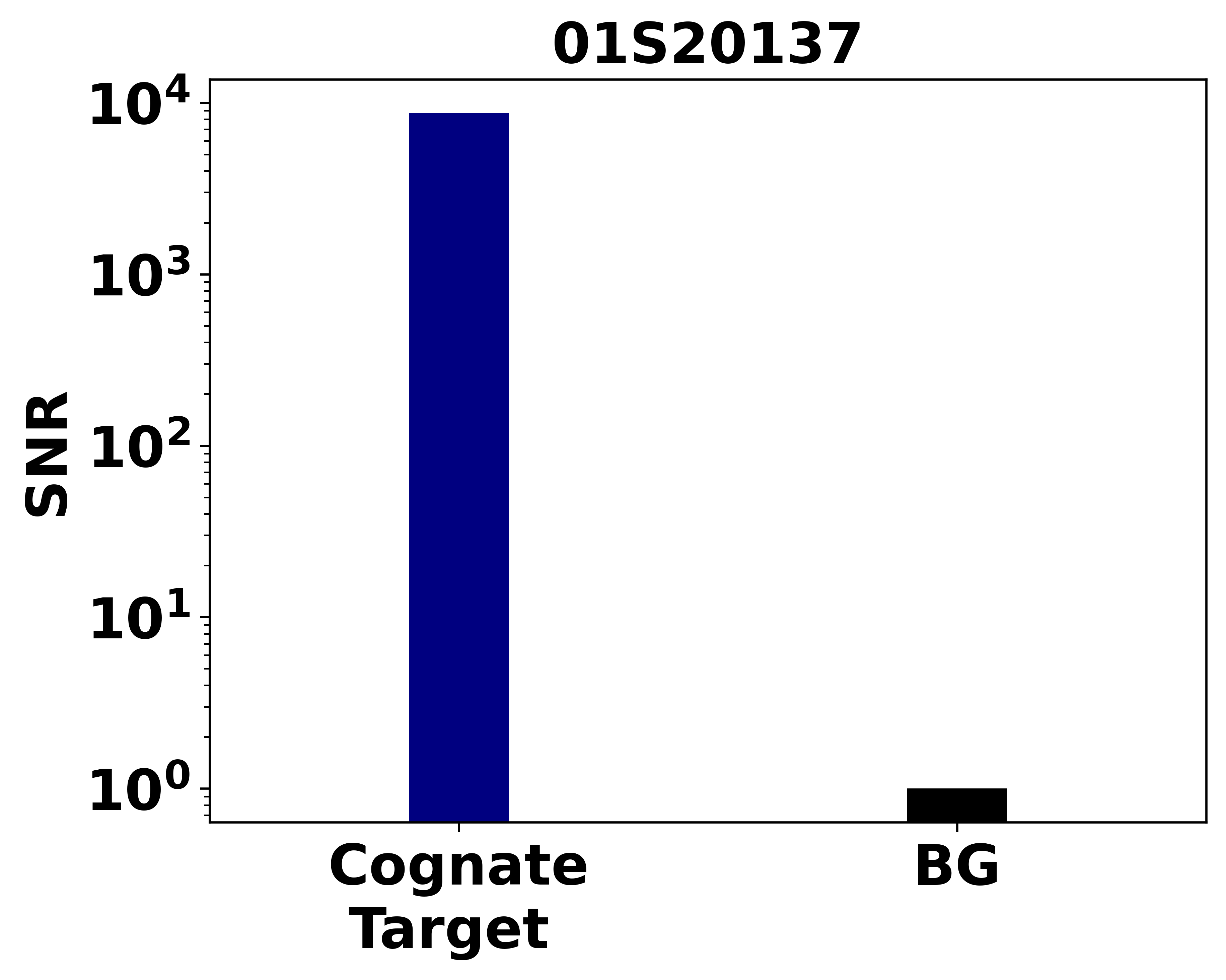

Binding assay determination of the signal to noise ratio (SNR) of V5-labeled Ankyrons® 01S20137 binding to 0.5 picomoles of immobilised IL4_HUMAN, over a background (BG) of non-cognate target protein. The Ankyron was pre-conjugated with the ProImmune Anti-V5 HRP label reagent before detection with a chemiluminescence substrate.
