Ankyron IL21R_HUMAN Clone DN40946
Clone Information
|
Clone ?
|
DN40946 |
|
Gene
|
IL21R NILR UNQ3121/PRO10273 |
|
UniProtID
|
Q9HBE5 |
|
Organism
|
Homo sapiens (Human) |
|
Entry Name
|
IL21R_HUMAN |
|
SNR ?
|
713200 |
|
Product Type
|
Monomer |
|
Ankyron Applications
|
|
|
Pack Size
|
100ug |
|
Label ?
Clones are also labelled with a His tag by default
|
|
|
Ankyron Kd
|
Kd Available |
Ankyrons® Testing Data
Monocytes were fixed in formaldehyde (1%), then stained using 1.4 µg V5-tagged Ankyron and anti-V5 antibody conjugated with APC (red) in Staining Buffer (RPMI 1640 + 10 % human serum), counterstaining nuclei with DAPI (blue). Inset: negative control of anti-V5 APC antibody alone.
Immunohistochemical analysis of paraffin-embedded human spleen using 10 μg/ml V5-tagged Ankyron and anti-V5 HRP (1 in 500), detecting with DAB (brown) and counterstaining nuclei with haematoxylin (blue-purple). Heat-mediated antigen retrieval with Leica Tris-EDTA buffer (pH9).

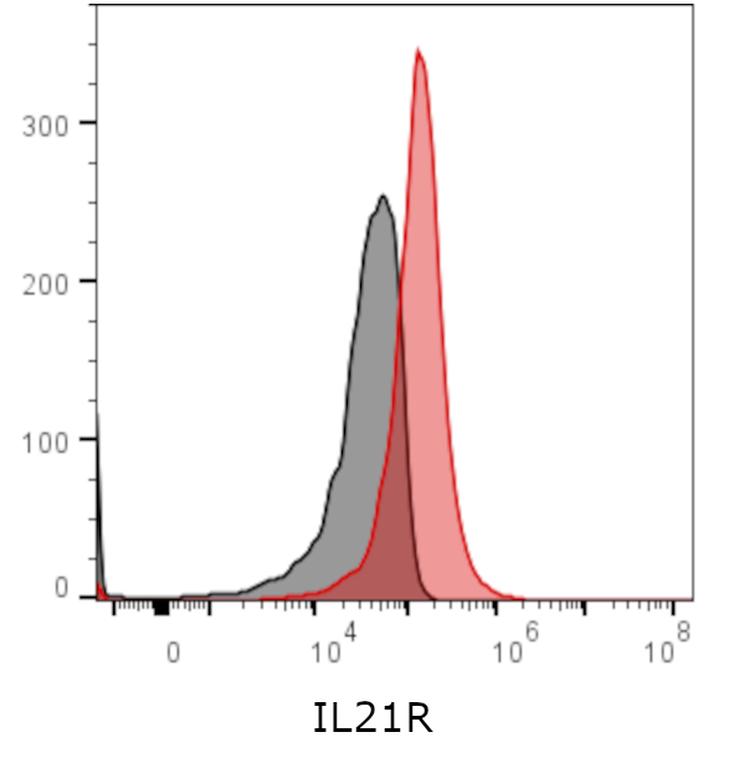

Flow cytometric analysis of monocytes following fixation with formaldehyde (1%), incubation with 0.4 μg of Ankyron and subsequent detection with anti-V5 APC (red). Negative control, anti-V5 APC only (gray).

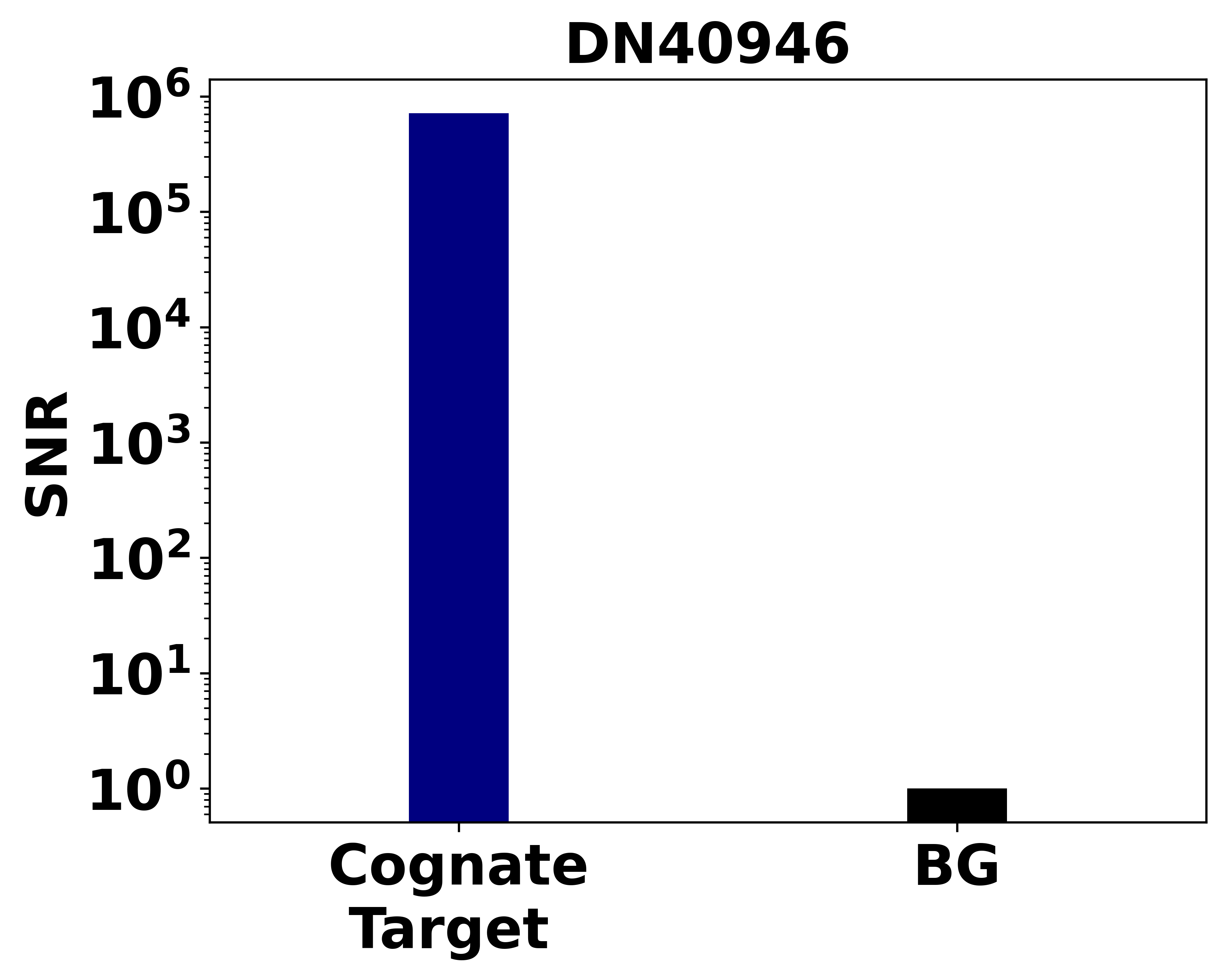

Binding assay determination of the signal to noise ratio (SNR) of V5-labeled Ankyrons® DN40946 binding to 0.5 picomoles of immobilised IL21R_HUMAN, over a background (BG) of non-cognate target protein. The Ankyron was pre-conjugated with the ProImmune Anti-V5 HRP label reagent before detection with a chemiluminescence substrate.

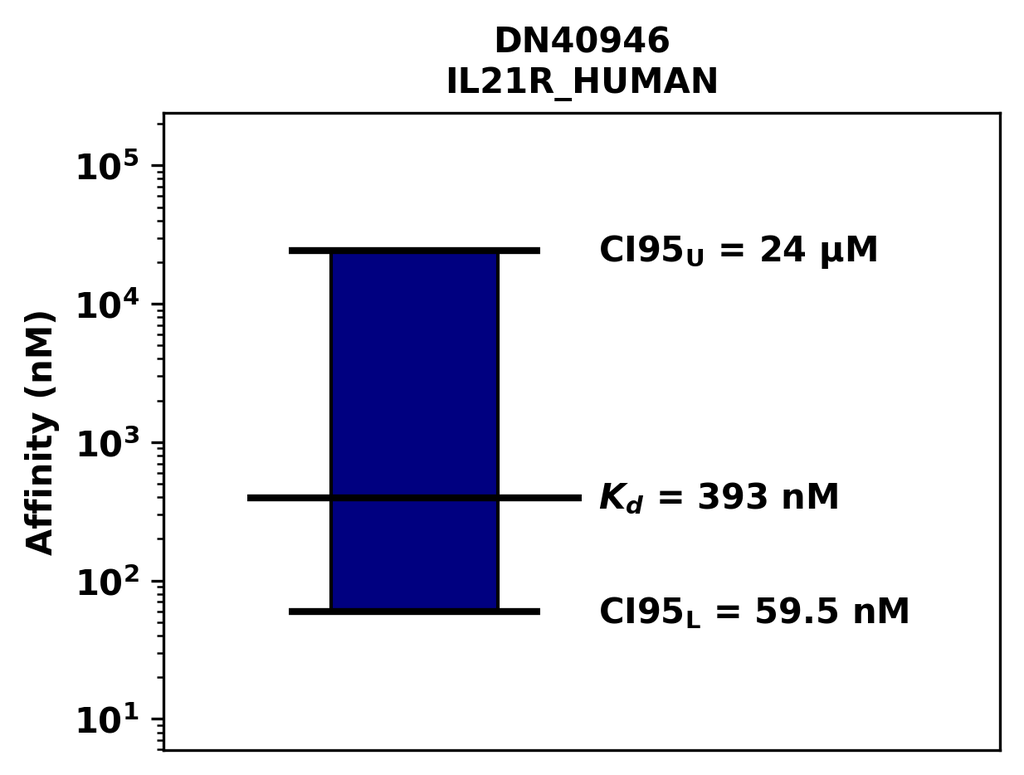

Affinity measurement of V5-labeled Ankyrons® DN40946 binding to IL21R_HUMAN, of value Kd = 393.0 nM, with 95% confidence bounds (CI95U, CI95L). Conjugation to ProImmune Anti-V5 HRP label reagent allows detection in Solution Equilibrium Titration immunoassay with a chemiluminescent substrate.
