Ankyron HNF4A_HUMAN Clone DV40440
Ankyrons® Testing Data
HepG2 were fixed in formaldehyde (1%), permeabilised with 0.5% Triton X-100 then stained using 1.4 µg V5-tagged Ankyron and anti-V5 antibody conjugated with APC (red) in Staining Buffer (RPMI 1640 + 10 % human serum), counterstaining nuclei with DAPI (blue). Inset: negative control of anti-V5 APC antibody alone.

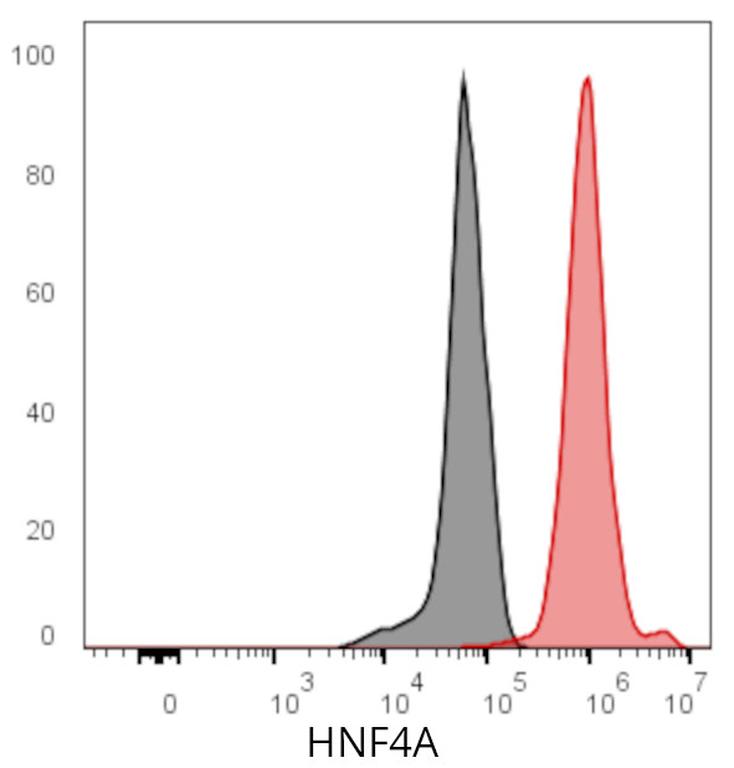

Flow cytometric analysis of human HepG2 cells following permeabilization and staining with pre-conjugated Ankyron (0.4 µg) and anti-V5 APC (red). Negative control, anti-V5 APC only (grey).

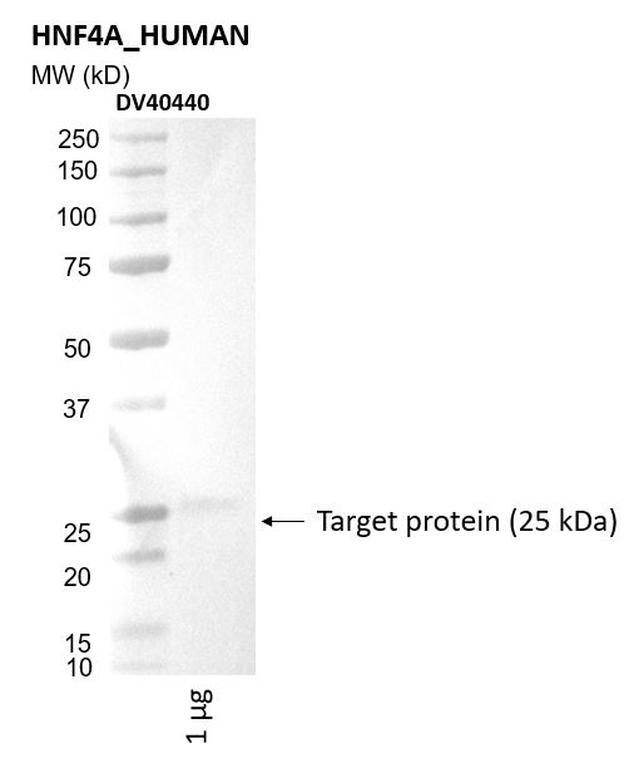

Colorimetric western blot analysis of purified target protein (1 µg) using 1 µg/ml V5-tagged Ankyron preconjugated with anti-V5-HRP (1 in 500).
Binding assay determination of the signal to noise ratio (SNR) of V5-labeled Ankyrons® DV40440 binding to 0.5 picomoles of immobilised HNF4A_HUMAN, over a background (BG) of non-cognate target protein. The Ankyron was pre-conjugated with the ProImmune Anti-V5 HRP label reagent before detection with a chemiluminescence substrate.

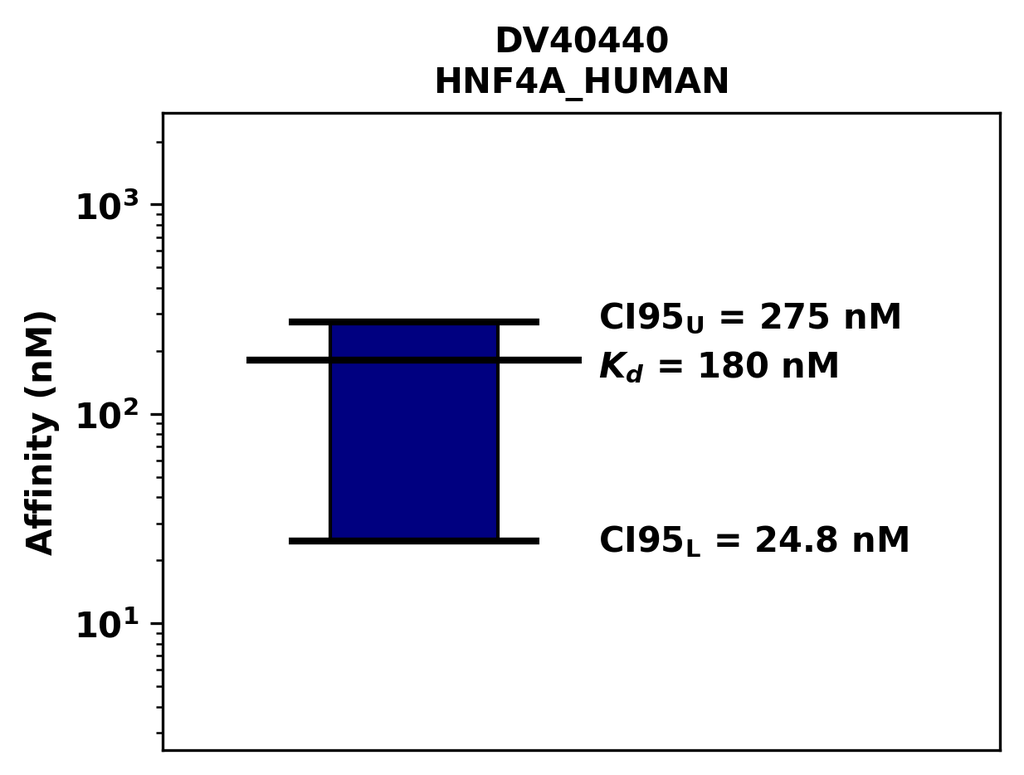

Affinity measurement of V5-labeled Ankyrons® DV40440 binding to HNF4A_HUMAN, of value Kd = 180.0 nM, with 95% confidence bounds (CI95U, CI95L). Conjugation to ProImmune Anti-V5 HRP label reagent allows detection in Solution Equilibrium Titration immunoassay with a chemiluminescent substrate.
