Ankyron CYTA_HUMAN Clone CQ40186
Clone Information
|
Clone ?
|
CQ40186 |
|
Gene
|
CSTA STF1 STFA |
|
UniProtID
|
P01040 |
|
Organism
|
Homo sapiens (Human) |
|
Entry Name
|
CYTA_HUMAN |
|
SNR ?
|
556 |
|
Product Type
|
Monomer |
|
Ankyron Applications
|
F, IF, IHC, ELISA, Kd |
|
Pack Size
|
100ug |
|
Label ?
Clones are also labelled with a His tag by default
|
|
|
Ankyron Kd
|
Kd <100nM |
Ankyrons® Testing Data
MCF7 were fixed in formaldehyde (1%), then stained using 1.4 µg V5-tagged Ankyron and anti-V5 antibody conjugated with APC (red) in Permeabilisation Staining Buffer (RPMI 1640 + 10 % human serum + 0.5 % saponin), counterstaining nuclei with DAPI (blue). Inset: negative control of anti-V5 APC antibody alone.
Immunohistochemical analysis of paraffin-embedded human skin using 10 μg/ml V5-tagged Ankyron and anti-V5 HRP (1 in 500), detecting with DAB (brown) and counterstaining nuclei with haematoxylin (blue-purple). Heat-mediated antigen retrieval with Leica Tris-EDTA buffer (pH9).

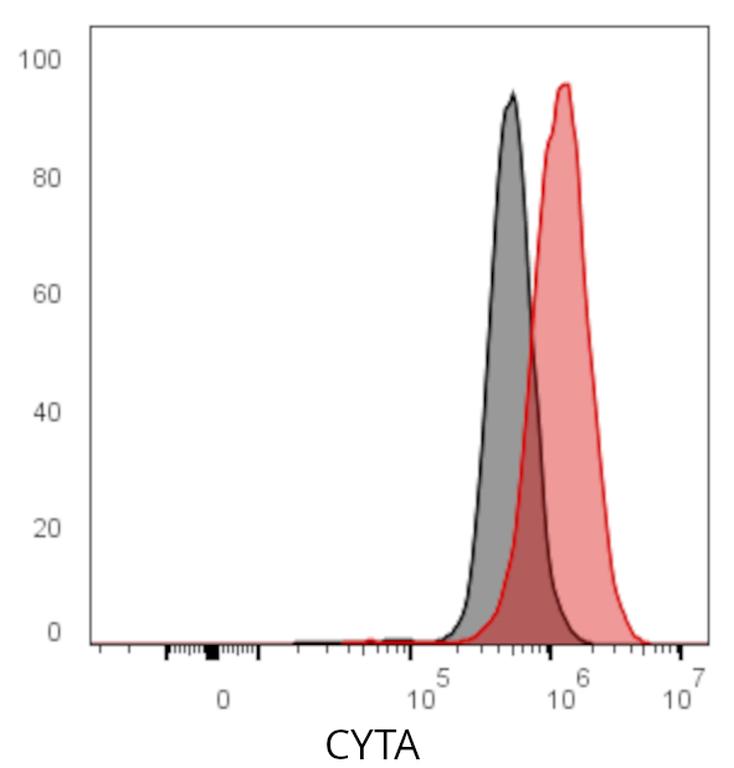

Flow cytometric analysis of MCF7 cells following permeabilisation and staining with pre-conjugated Ankyron (0.4 μg) and anti-V5 APC (red). Negative control, anti-V5 APC only (grey).

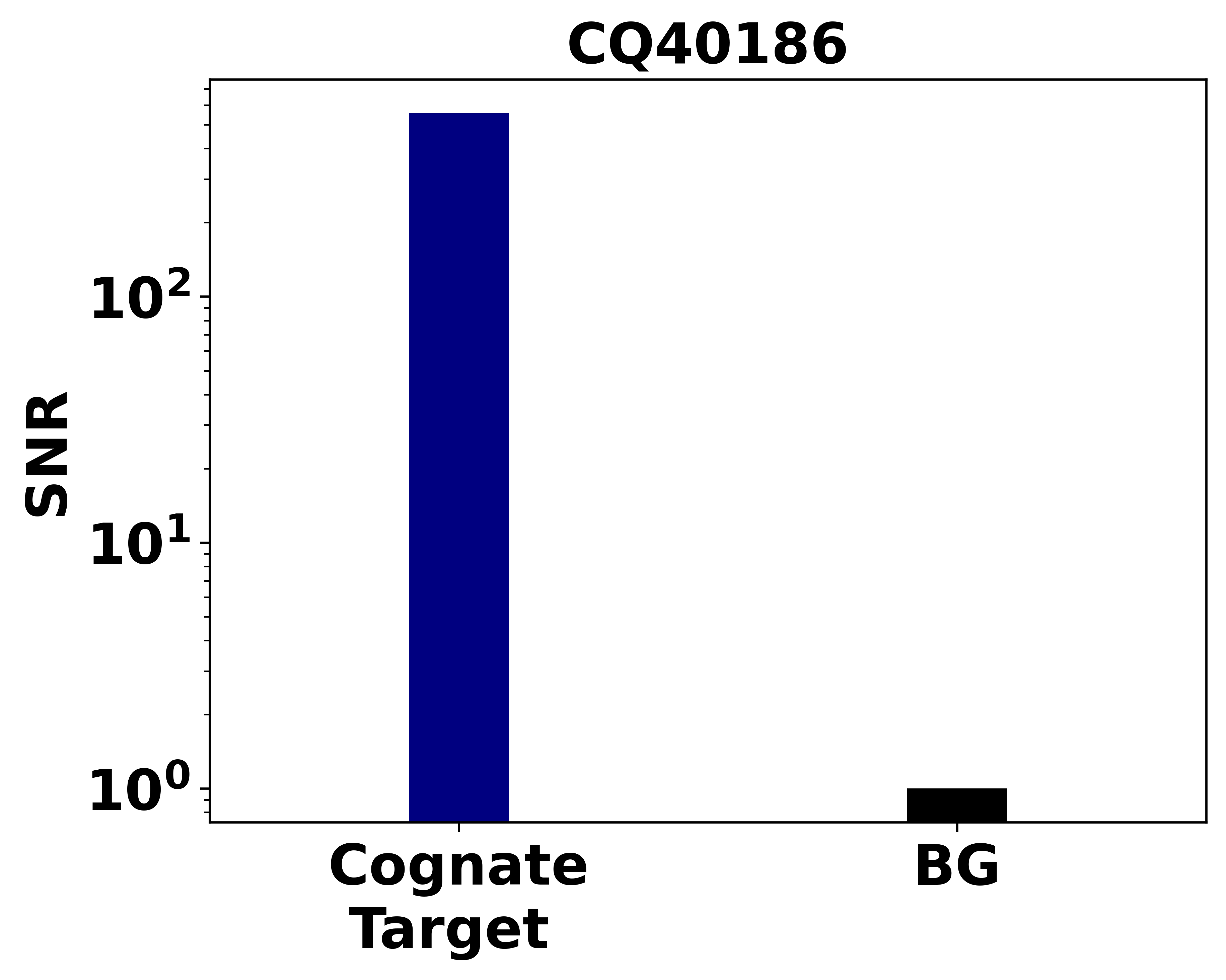

Binding assay determination of the signal to noise ratio (SNR) of V5-labeled Ankyrons® CQ40186 binding to 0.5 picomoles of immobilised CYTA_HUMAN, over a background (BG) of non-cognate target protein. The Ankyron was pre-conjugated with the ProImmune Anti-V5 HRP label reagent before detection with a chemiluminescence substrate.

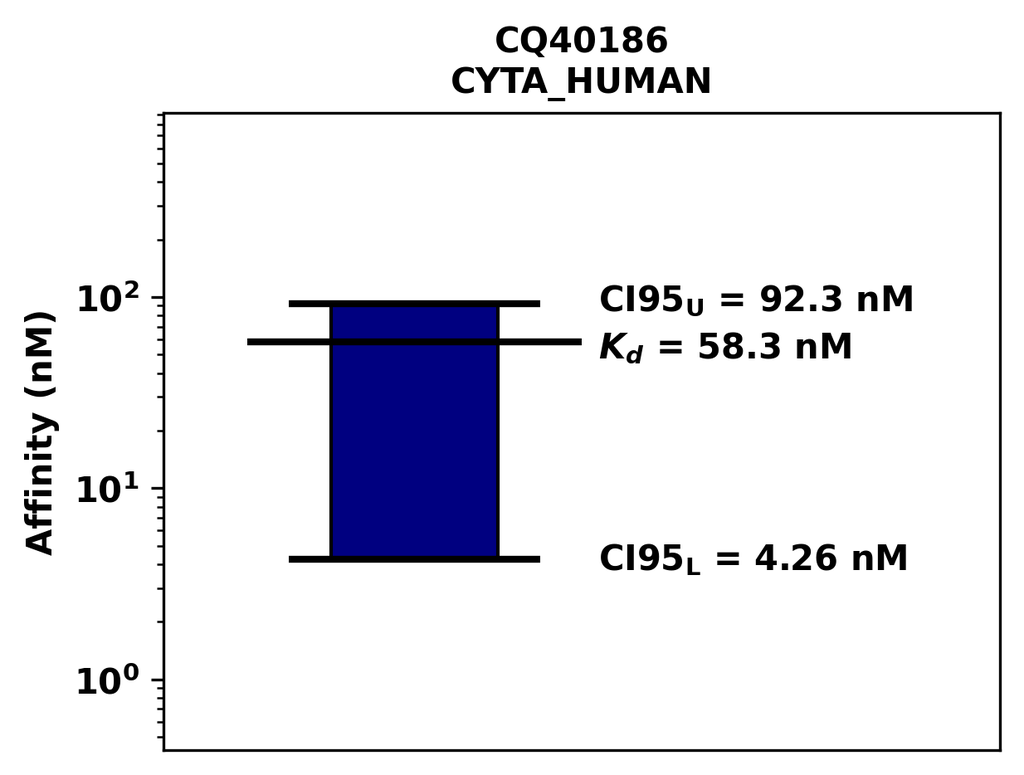

Affinity measurement of V5-labeled Ankyrons® CQ40186 binding to CYTA_HUMAN, of value Kd = 58.3 nM, with 95% confidence bounds (CI95U, CI95L). Conjugation to ProImmune Anti-V5 HRP label reagent allows detection in Solution Equilibrium Titration immunoassay with a chemiluminescent substrate.
