Ankyron ADA12_HUMAN Clone AR40427

HeLa cells were fixed in formaldehyde (1%), then stained using 1.4 µg V5-tagged Ankyron and anti-V5 APC (red) in Permeabilisation Staining Buffer (RPMI 1640 + 10 % human serum + 0.5% saponin), counterstaining nuclei with DAPI (blue).

HeLa were fixed in formaldehyde (1%), then stained using 1.4 µg V5-tagged Ankyron and anti-V5 antibody conjugated with APC (red) in Permeabilisation Staining Buffer (RPMI 1640 + 10 % human serum + 0.5 % saponin), counterstaining nuclei with DAPI (blue). Inset: negative control of anti-V5 APC antibody alone.

Immunohistochemical analysis of paraffin-embedded human triple positive breast cancer using 10 μg/ml V5-tagged Ankyron and anti-V5 HRP (1 in 500), detecting with DAB (brown) and counterstaining nuclei with haematoxylin (blue-purple). Heat-mediated antigen retrieval with Leica Tris-EDTA buffer (pH9).

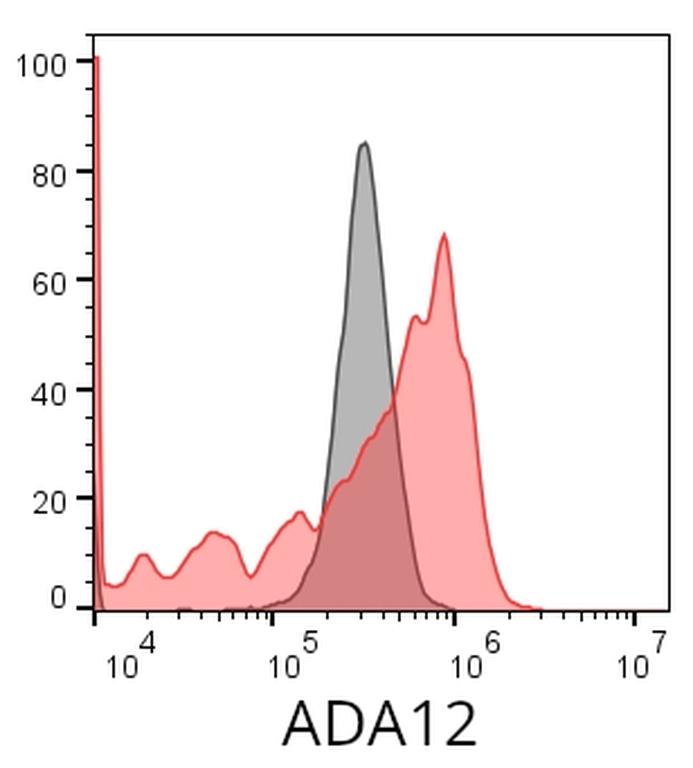

Flow cytometric analysis of permeabilised HeLa cells following pre-conjugation of 0.4 μg of Ankyron with anti-V5 APC (red). Negative control, anti-V5 APC only (grey)

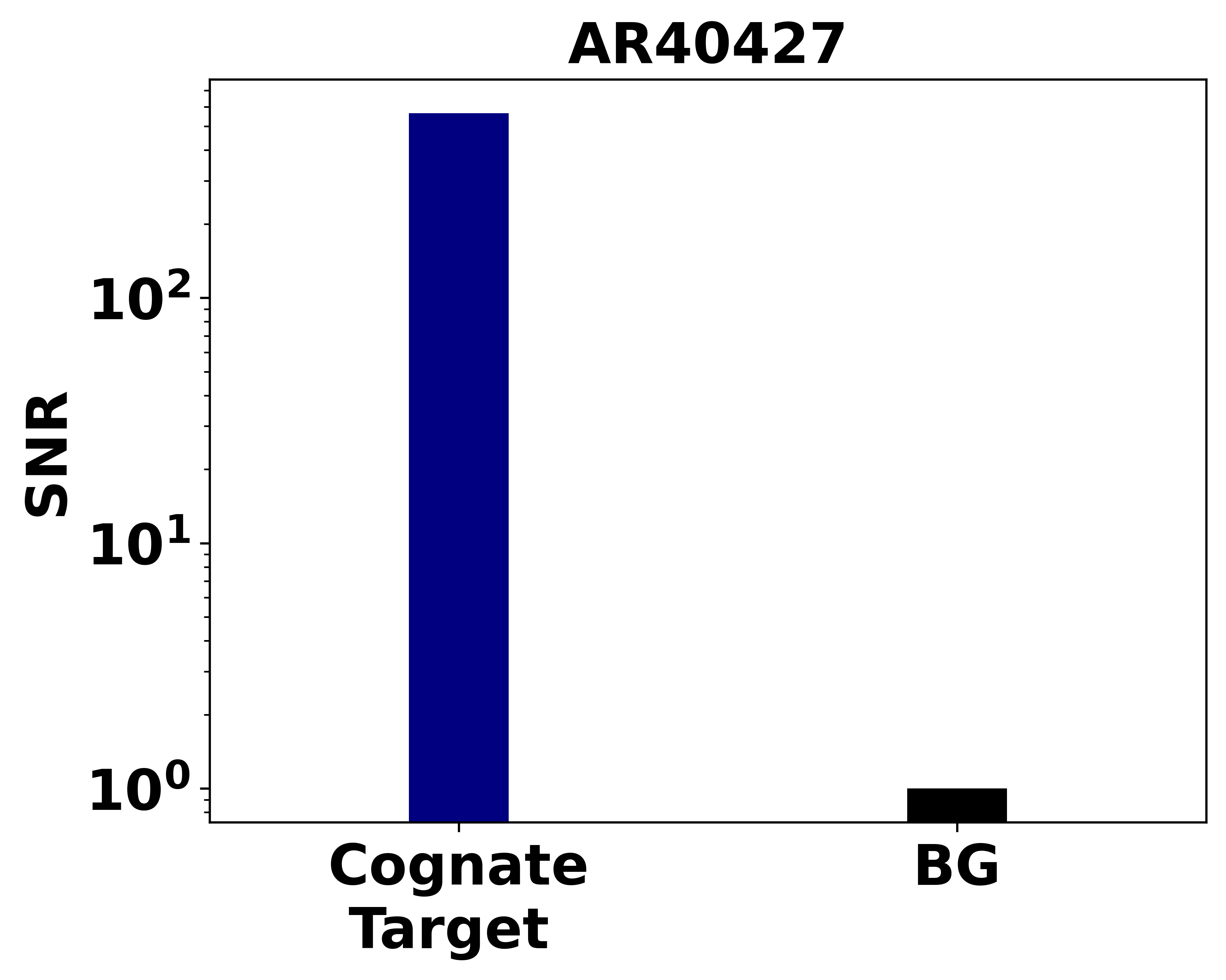

Binding assay determination of the signal to noise ratio (SNR) of V5-labeled Ankyrons® AR40427 binding to 0.5 picomoles of immobilised ADA12_HUMAN, over a background (BG) of non-cognate target protein. The Ankyron was pre-conjugated with the ProImmune Anti-V5 HRP label reagent before detection with a chemiluminescence substrate.
